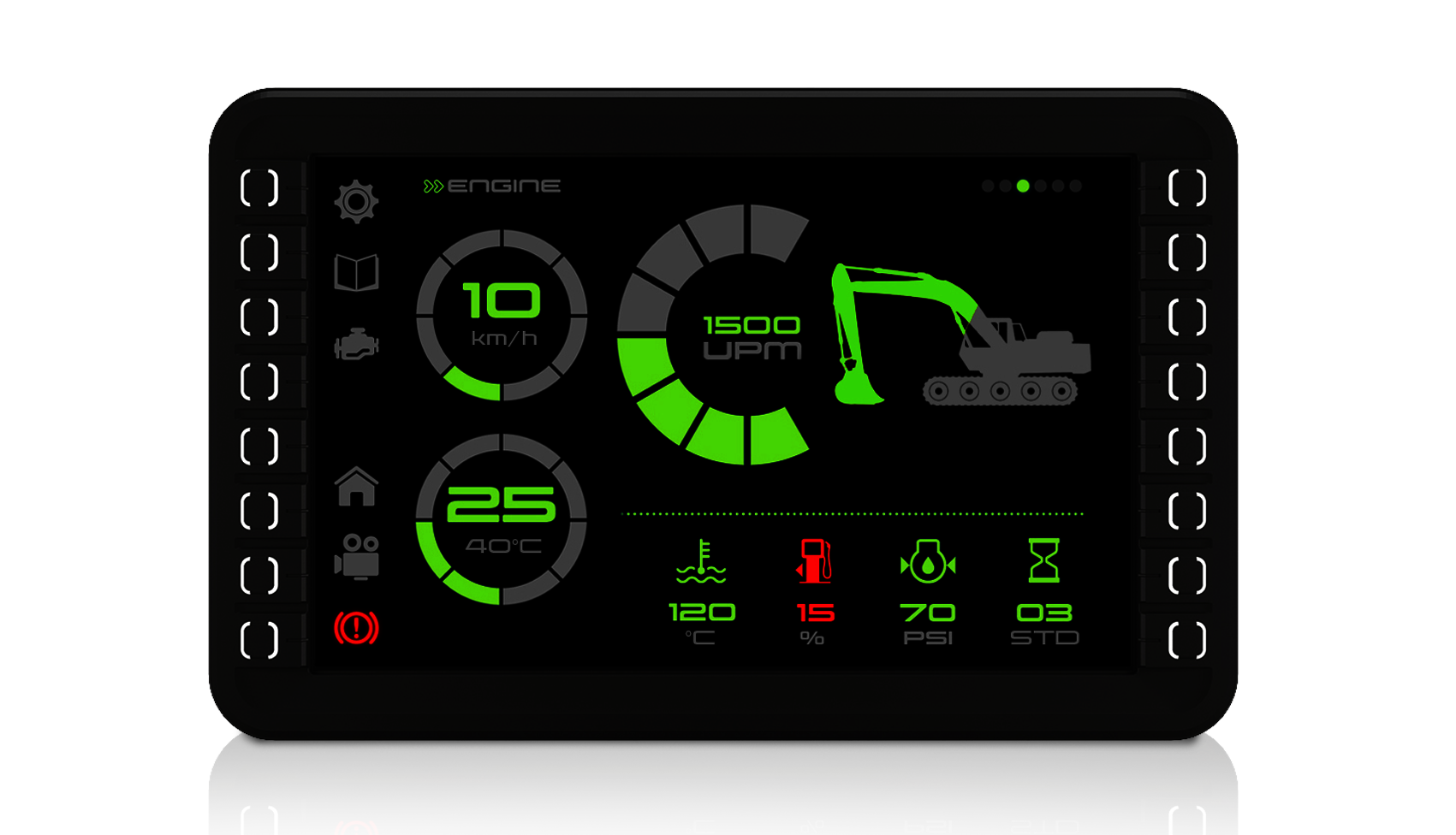

ehb SMARTdisplay 812

12" Programmable Display

The ehb SMARTdisplay 812 is a programmable 12" display, designed for use as a stand-alone product. Programming is done with CODESYS 3.5 or Qt

Main features / key advantages

Optional touchscreen variant
Intuitive operability with and without keys possible

Flexible programmability
Variants for CODESYS or Qt programming available

12" color screen for harsh environments
Provides excellent readability in direct sunlight and use under extreme conditions such as high humidity and temperature changes

Extremely powerful iMx6 quad processor
Ensures fastest processing and response times

16 GB flash and 2 GB RAM memory
Enables extensive programming and storage of very large amounts of data as well as fast access to it

6 configurable inputs
6 configurable digital outputs

Provide excellent system flexibility and connectivity to sensors and actuators

3 independent CAN interfaces with J1939, CANopen or CAN
Allows variable communication options

2 independent Ethernet interfaces and WLAN (with external antenna) for communication
Direct connection for demanding communication requirements / USB host 2.0 / GPS - with external antenna

IP67 protection class
Ensures a high level of protection against dust and water ingress.

2 Kamera-Eingänge
Ermöglicht weitere visuelle Flexibilität.

4 camera inputs
Allows flexibility for mobile applications

Variants:

ehb5531-1 = ehb SMARTdisplay 812 touchscreen with keys – CODESYS
ehb5531-2 = ehb SMARTdisplay 812 touchscreen without keys  – CODESYS
ehb5531-3 = ehb SMARTdisplay 812 touchscreen with keys – QT
ehb5531-4 = ehb SMARTdisplay 812 touchscreen without keys - Qt
