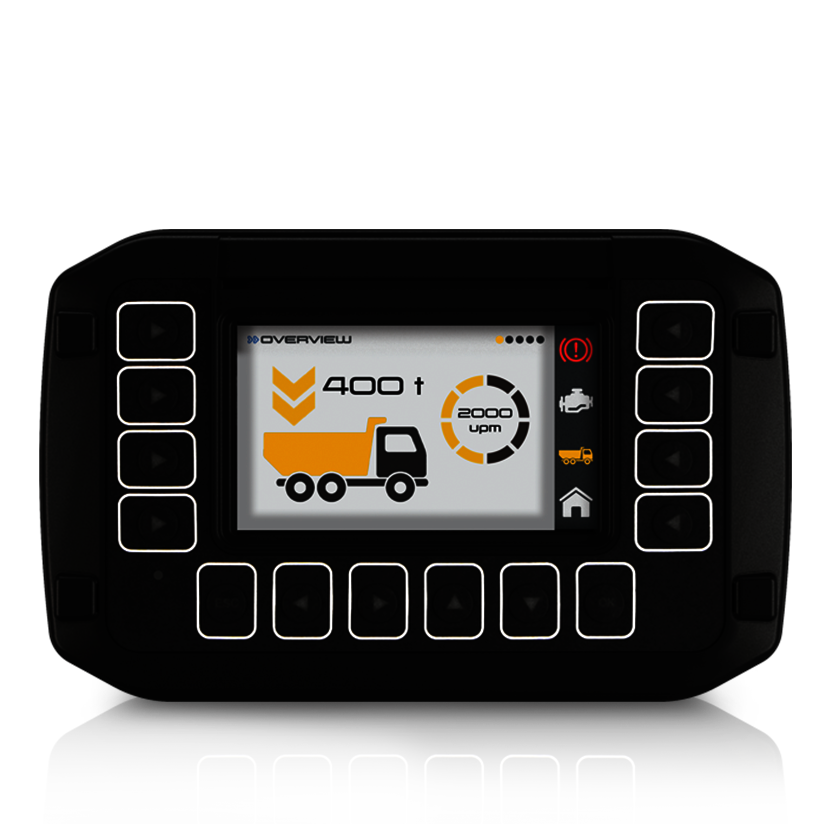

ehb SMARTdisplay 840

ehb SMARTdisplay 840 - seitliche Ansicht

4.3" Programmable Display
The ehb SMARTdisplay 840 is a 4.3" programmable display designed for use on vehicles and off-highway machinery.
Designed for use as a stand-alone product, the ehb SMARTdisplay 840 offers the user outstanding flexibility.
The display enables a high level of functionality for a wide variety of application types. Configuration is done with CODESYS 3.5..

Main features / Key benefits

Robust HMI/programmable display specifically designed for mobile applications.
Designed to withstand the harshest environments.

4.3" colour screen for harsh environments.
Provides excellent readability in high humidity environments.

Powerful Cortex M7 400 MHz clock speed + M4 200 MHz heart clock speed.
Ensures fast response times during operation

64 MB of SDRAM / CODEYSY Application / 20 MB User Data / 8 KB Data Memory
Allows large files to be stored and accessed quickly.

4 configurable inputs, digital or analogue
4 configurable digital outputs.

Offer excellent system flexibility

2 independent CAN interfaces, J1939, CANopen and CAN
Allow variable communication options.

Ethernet interface for communication
Direct connection for demanding communication requirements.

IP67 protection class
Ensures a high level of protection against the ingress of dust and water.

Flexible user programming via CODESYS 3.5
Industry standard programming software.

C programming on request
For additional programming flexibility
