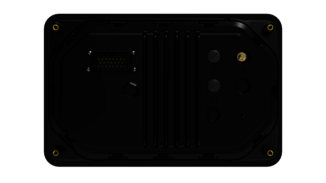

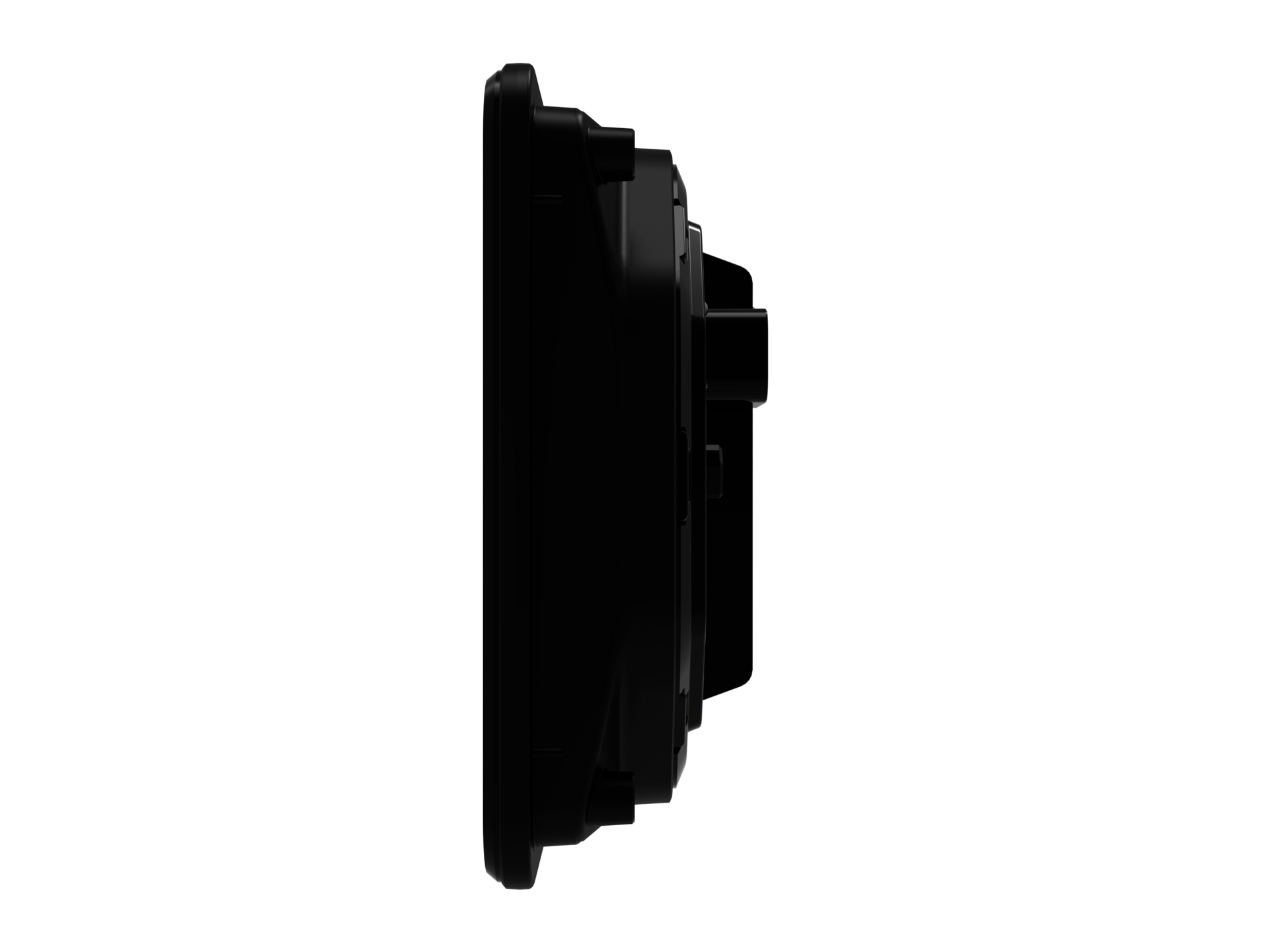

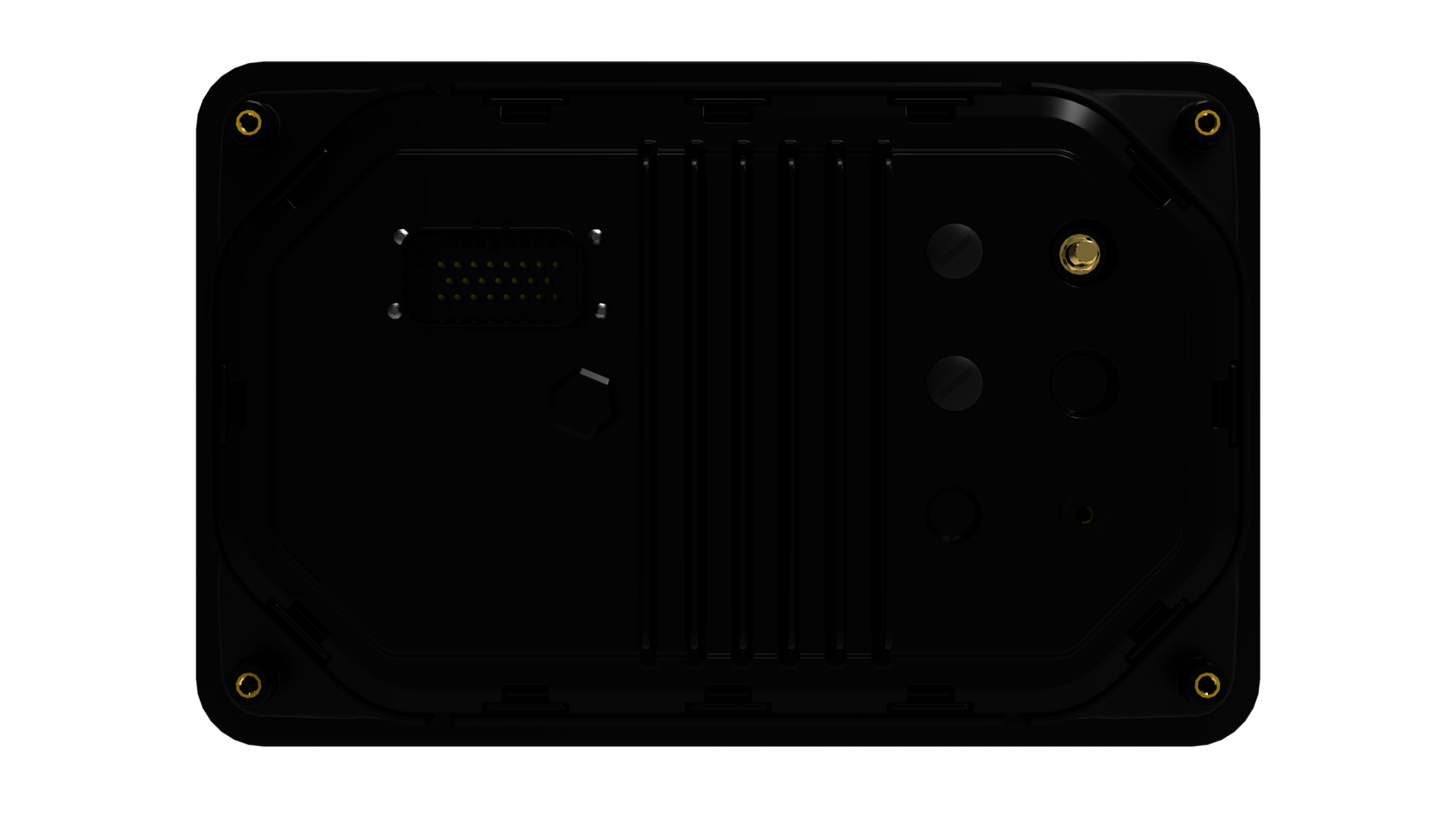

ehb SMARTdisplay 810

10.1" programmable display
The ehb SMARTdisplay 810 is a programmable 10.1-inch display designed for use as a stand-alone product. Configuration is carried out using CODESYS 3.5 or Qt 6.

Key features/main advantages

Optional touchscreen version
Intuitive operation with or without buttons

Flexible programmability
Variants available for CODESYS or Qt programming

10.1" colour screen for harsh environments
Offers excellent readability in direct sunlight and when used in extreme conditions, such as high humidity and temperature changes

8 GB flash memory and 1 GB RAM memory
Enables extensive programming and storage of very large amounts of data, as well as fast access to it

4 configurable digital inputs
4 configurable digital outputs
Offer excellent system flexibility and connection to sensors and actuators

2 independent CAN interfaces, J1939, CANopen and CAN
Enables variable communication options.

Ethernet interfaces for communication.
Direct connection for demanding communication requirements.

2 independent Ethernet interfaces and WLAN (with external antenna) for communication
Direct connection for demanding communication requirements / USB Host 2.0

Protection class IP67 and NEMA6
Ensures a high level of protection against the ingress of dust and water.

2 camera inputs
Enables further visual flexibility.

Variants:
ehb5528-1 = ehb SMARTdisplay 812 touchscreen with buttons – CODESYS
ehb5528-2 = ehb SMARTdisplay 812 touchscreen without buttons – CODESYS
ehb5528-3 = ehb SMARTdisplay 812 touchscreen with buttons – Qt
ehb5528-4 = ehb SMARTdisplay 812 touchscreen without buttons – Qt
