HCflex /CAN bus

ehb5420

The HCflex/CANbus with no-stress function offers a wide range of functions for controlling wood chippers with CAN-bus in a single unit.

Further accessories or additional relays are superfluous. The HCflex/CANbus controls electric motors including Stage V and is ideal for challenging control tasks for mechanical and electric motors. You are free to choose the manufacturer of the electronically controlled motors. Individual customer requests/functions can be integrated quickly and easily.

Highlights

  • No-stress function
  • Rapid installation and conversion, safe functionality even in robust environments
  • Good display readability and intuitive operation via icons, even in poor visibility
  • Over 20 different machine types programmable and free choice of motor manufacturer
  • Communicates with the ECU
  • Ideal for motor or PTO-driven machines

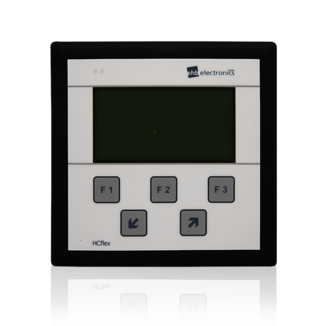

HCflex CANbus-Frontabbildung mit Spiegelung unten

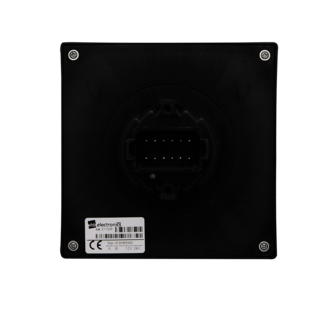

Rückseite HCflex

HCflex offers a wide range of functions for the control of wood chippers without CAN-bus (SAE J1939), for machines driven by motor or power take-off.

Large transflective, backlit monochrome display
The HCflex provides perfect readability even in poor light conditions.

UV-resistant, rugged PA6 housing for installation in a 52mm standard bore. Reliable mounting with clamp element bolted from the rear.
Quick installation and conversion. Dependable functioning even in harsh environments.

Pre-programming functionality for up to 20 different machine types
Optimisation of access times in production and optimisation of storage.

Four security levels for different authorisations and automatic fault memory
Access to relevant functions restricted to authorised personnel.
Reliable reproduction of faults occurred.

Also with CANbus (ehb5401-1)
Implementation of demanding control operations for mechanical and electronic motors.

Three different types of wood are accessible through function buttons
Easy operation to ensure optimum machine performance.

Safety without compromise
The motor is safely stopped when the chip disk is blocked, the hood is opened or the safety devices are activated.
